Najważniejsze cechy
Aluminium frame with Bosch Performance Line CX e-drive & 600 or 800 Wh battery. RockShox Psylo Silver RC fork & RockShox Deluxe Select shock. SHIMANO CUES 10-speed

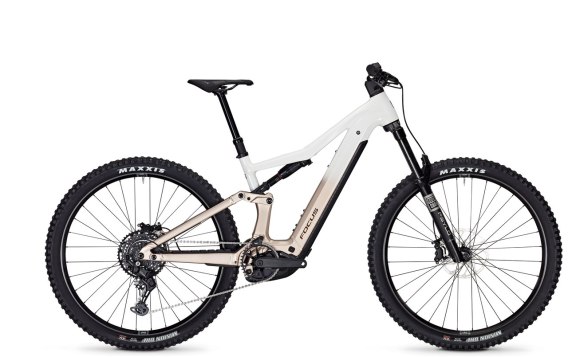

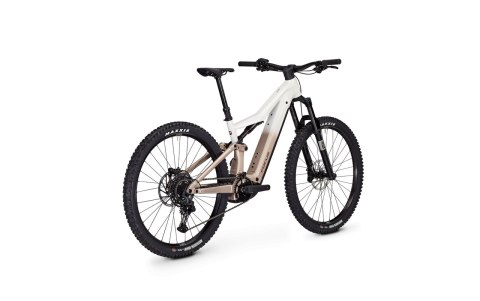

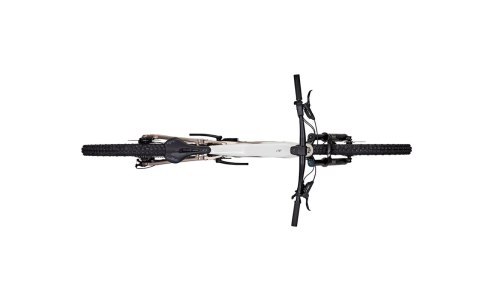

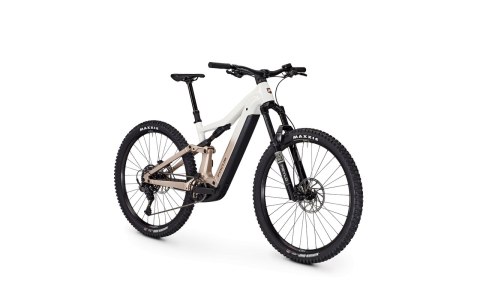

If there was only one e-mountain bike in the world, the JAM² 6.7 would be the one for you. It's the manifestation of a trail bike, supercharging your confidence on any trail - up or down. With its balanced and confidence-inspiring nature, the JAM² 6.7 bridges the gap between its FOCUS siblings on both ends of the e-MTB spectrum. If you want to feel the sensation of a Rider's High on your home turf as well as big backcountry trail missions, then look no further. The trail bike rolling on 29" wheels is available with either a 600 Wh or an 800 Wh battery. Both batteries fit the frame with only a different down tube cover - no modification needed. Also, all frames in all sizes are compatible with the 250 Wh range extender, leading to four possible battery configurations from 600 to whooping 1050 Wh. The JAM² 6.7 is your e-MTB for unlimited trail fun, up and down.
Specyfikacja
Rama i komponenty
| Rama |
7005 hydroformed aluminium, 150 mm F.O.L.D. kinematics, 148x12 mm thru axle, Post Mount 180 mm |
| Materiał ramy |
aluminum |
| Widelec |
Rock Shox Psylo Silver RC, 160 mm |
| Amortyzator |
Rock Shox Deluxe Select, DebonAir+, 150 mm |
| Kierownica |
Alloy, width: 800 mm, rise: 30 mm |
| Mostek |
FOCUS C.I.S. 2.0, 40 mm |
| Sztyca |
Post Moderne DP-212, S / M /L / XL: 125 / 170 / 170 / 200 mm, 34,9 mm |
| Siodełko |
Selle Italia X3 Boost |
| Gripy |
VP Lock-On Grips |
| Waga |
25.6 kg |
| Maks. waga całkowita |
150 kg |
Napęd i hamulce
| Przerzutka tylna |
Shimano Cues, 10-speed |
| Korba |
Samox, 165 mm |
| Manetki |
Shimao Cues |
| Kaseta |
Shimano CS-LG300, 11-48T |
| Łańcuch |
Shimano CN-LG500 |
| Liczba biegów |
11 |
| Hamulce |
Tektro Gemini SL, 4-piston |
| Klamki hamulcowe |
Tektro Gemini SL, 4-piston |
| Tarcze hamulcowe |
Tektro TR, front: 203 mm / rear: 203 mm |
Koła
| Obręcze |
WTB STi30, alloy, 29" |
| Piasta przednia |
Shimano HB-TC500 |
| Piasta tylna |
Shimano FH-TC500 |
| Opony |
Maxxis Minion DHF, TLE, EXO, 29 x 2,5",Maxxis Minion DHF, TLE, EXO, 29 x 2,5" |
| Rozmiar kół |
29" |
System e-bike
| Silnik |
Bosch Performance Line CX, 85 NM, 100 NM update via Flow App |
| Maks. wspomaganie |
25 km/h |
| Wyświetlacz |
Bosch Purion 200 |
| Bateria |
Downtube, integrated, 600 Wh |
| Pozycja baterii |
removable, compatible with Range Extender |
