Najważniejsze cechy
Aluminium frame with Bosch Performance Line CX e-drive & 600 or 800 Wh battery. FOX 38 Rhythm fork & FOX DHX Performance coil shock. SHIMANO DEORE 12-speed & mullet wheels

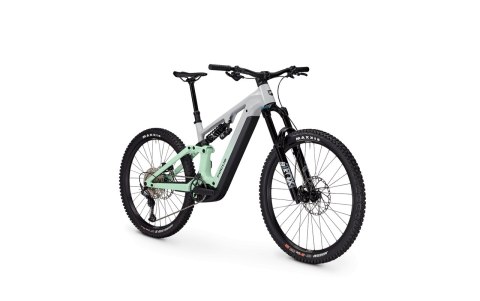

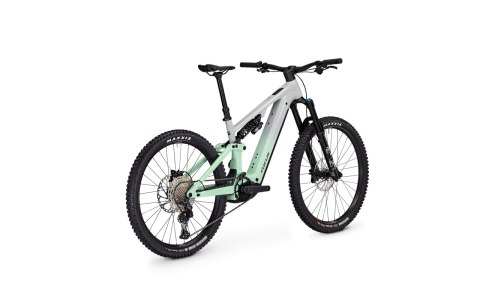

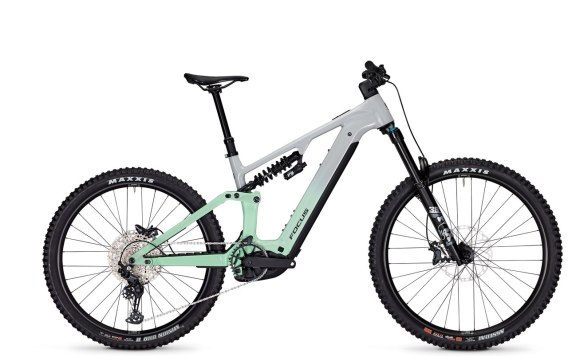

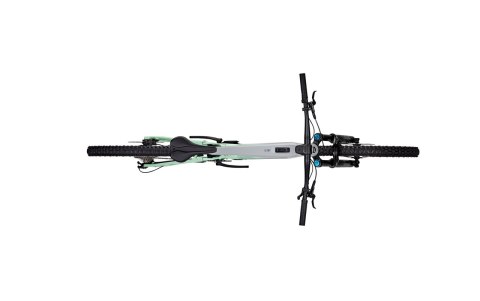

With the FOCUS SAM² 6.8 queueing for a lift and shuttle is officially a thing of the past. Everything about this machine is made for down. The bike might be silent and free from annoying acoustics, but the FOCUS SAM² 6.8 screams speed, enabling you to lap the roughest trails at the limit of what your body and mind can handle. This is your e-MTB, when your bike is supposed to do anything but hold you back. Because the FOCUS SAM² 6.8 will elevate your riding to a level you did not know existed. The enduro bike offers multiple downhill-oriented features: It rolls on mullet wheels (front: 29" / rear: 27,5"), kinematics are optimised for coil shocks and both the head angle and the rear triangle can be adjusted. Of course there is no display on the FOCUS SAM² 6.8 - no distraction, only shredding. It is available with either a 600 Wh or an 800 Wh battery. Both batteries fit the frame with only a different down tube cover - no modification needed. Also, all frames in all sizes are compatible with the 250 Wh range extender, leading to four possible battery configurations from 600 to whooping 1050 Wh. It is the e-MTB for the roughest trails.
Specyfikacja
Rama i komponenty
| Rama |
7005 hydroformed aluminium, 165 mm F.O.L.D. kinematics, 148x12 mm thru axle, Post Mount 180 mm |
| Materiał ramy |
aluminum |
| Widelec |
Fox 38 Rhythm, Grip 3-Position, 170 mm |
| Amortyzator |
Fox DHX Performance, Coil: 350/400/500/600 lbs (S/M/L/XL), 165 mm |
| Kierownica |
Alloy, width: 800 mm, rise: 30 mm |
| Mostek |
FOCUS C.I.S. 2.0, 40 mm |
| Sztyca |
Post Moderne DP-212, S / M /L / XL: 125 / 170 / 200 / 200 mm, 34,9 mm |
| Siodełko |
Focus |
| Gripy |
VP Lock-On Grips |
| Waga |
26.5 kg |
| Maks. waga całkowita |
150 kg |
Napęd i hamulce
| Przerzutka tylna |
Shimano Deore, 12-speed |
| Korba |
Samox, 165 mm |
| Manetki |
Shimano Deore |
| Kaseta |
Shimano CS-M6100, 10-51T |
| Łańcuch |
Shimano CN-M6100 |
| Liczba biegów |
12 |
| Hamulce |
Shimano Deore BR-M6120, 4-piston |
| Klamki hamulcowe |
Shimano Deore BR-M6120, 4-piston |
| Tarcze hamulcowe |
Shimano SM-RT66, front: 220 mm / rear: 220 mm |
Koła
| Obręcze |
WTB STi30 TGH, alloy, 29" |
| Piasta przednia |
Formula DC-611 |
| Piasta tylna |
Formula DC-648 |
| Opony |
Maxxis Assegai, DoubleDown, 3C MaxxGrip 29 x 2,5",Maxxis Minion DHR II, Downhill, 3C MaxxGrip 27,5 x 2,5" |
| Rozmiar kół |
29" |
System e-bike
| Silnik |
Bosch Performance Line CX, 85 NM, 100 NM update via Flow App |
| Maks. wspomaganie |
25 km/h |
| Wyświetlacz |
Bosch Mini Remote + System Controller |
| Bateria |
Downtube, integrated, 600 Wh |
| Pozycja baterii |
removable, compatible with Range Extender |
